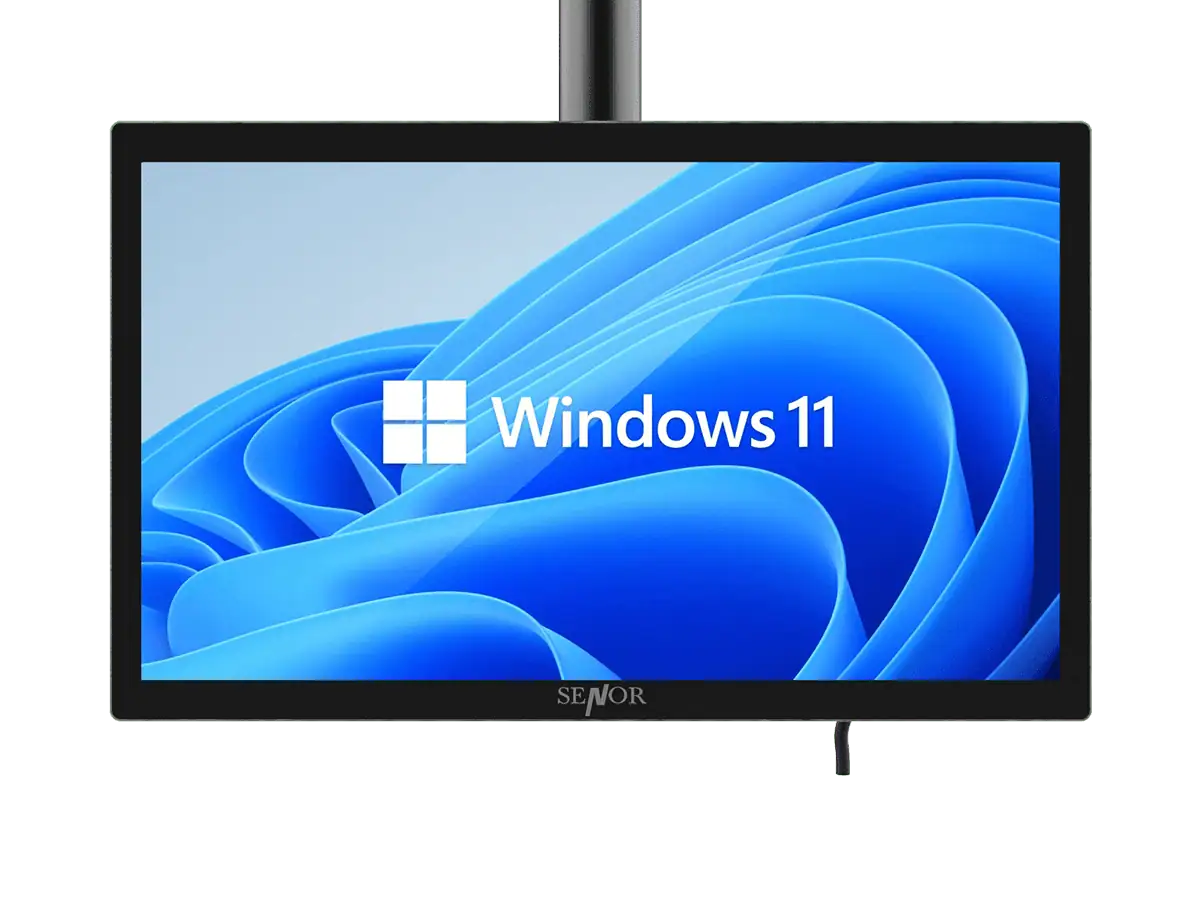

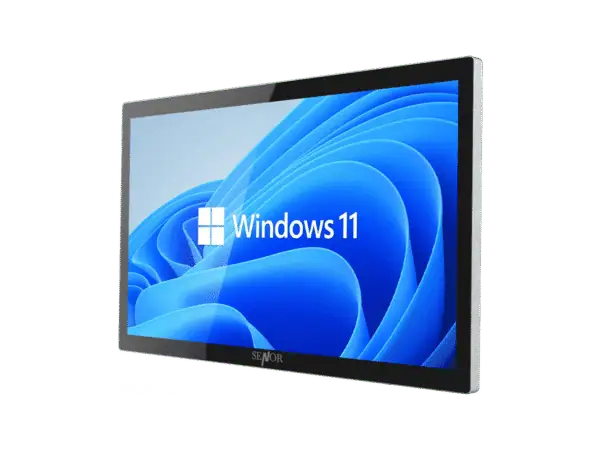

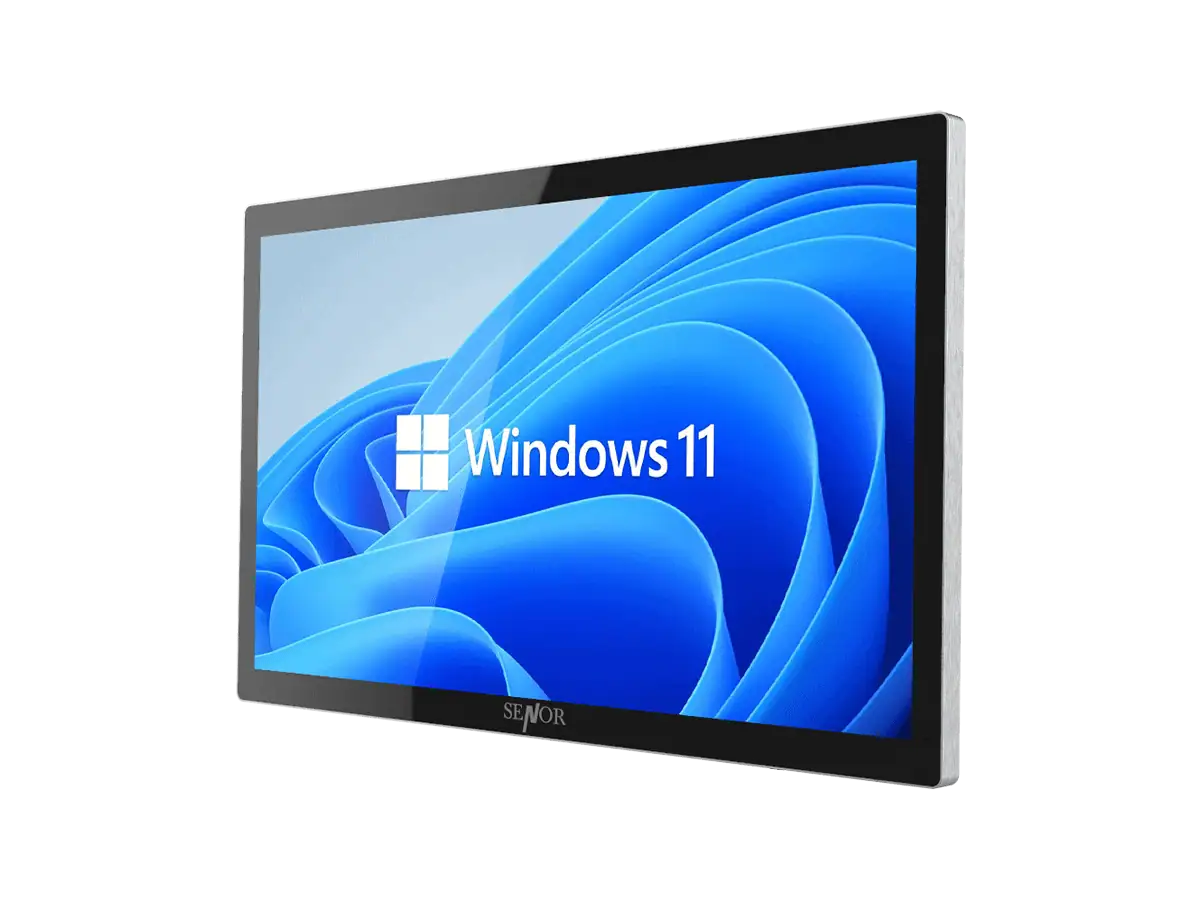

The rSPC 18 Industrial Panel PC is designed for industrial automation and commercial applications that require a reliable touchscreen computing platform. It provides flexible deployment options for machine control, monitoring and interactive operator environments.
Key Features
| rSPC T318 | rSPC T518 | rSPC T718 | |
| Processor | Intel Core i3-1215U (10M Cache, up to 4.40 GHz) | Intel Core i5-1235U (12M Cache, up to 4.40 GHz) | Intel Core i7-1255U (12M Cache, up to 4.70 GHz) |
| System Memory | 8 GB DDR4 RAM (up to 32 GB) | ||
| Storage | 1 x 128 GB PCle Gen4x4 NVMe M.2 2280 SSD 1 x PCle Gen4x4 M.2 2280 expansion socket, supports RAID 0/1 |
||
| Size/Resolution | 18” TFT LCD / 1920 x 1080 pixels | ||
| Touch Screen Panel | Projected capacitive touch (10-point, multi-touch) | ||
*Product specifications are subject to change without notice
An industrial PC may suit applications that need a dedicated computer and touch interface in a demanding operating environment. Selection should consider wetness, dust, temperature range, sunlight or display brightness, and the risk of physical damage at the site.
An industrial PC and a standard POS terminal can differ in construction, mounting options, environmental specifications, temperature range, I/O ports and powered-port requirements. Features such as Wake-on-LAN may also be relevant. These requirements can affect the internal components and configuration selected for the industrial PC.
Compare touch technology, processor, memory, storage, operating-system support period, ports, mounting options, environmental protection, stainless-steel grade and display brightness. Also consider whether the site involves water, gloves, cleaning fluids, gases, sunlight or other conditions that affect the required configuration.
